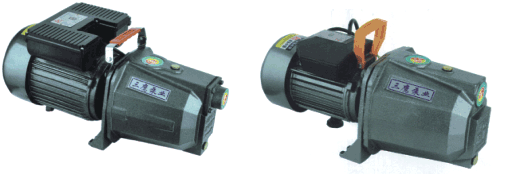

Product Name
JET-type jet pump series
- JET type jet pump (hereinafter referred to as pump), mainly by the pump motors, pumps, sealing of three parts. Motors asynchronous motor; JET-type jet pump uses centrifugal impeller - radial vanes - the unique structure of its jet pipe pressure water first principle is caused by a vacuum through the nozzle, and then sucked into the low water pump inlet fluid pressurized by the pump discharge, self-priming. Seal: pump and motor with single mechanical seal, shaft rotating retaining ring from the auxiliary water rejection, isolation effect, stationary port seals used'' O "shaped rubber ring as static sealing.
- This pump series small size and light weight. Compact, easy to install, is an energy efficient, healthy and safe ideal household electric pump is widely used in agricultural irrigation, sprinkler irrigation, garden spray irrigation, greenhouses, water supply and drainage and aquaculture for water wells, water pressurized water of occasions such as family life.
- 1. medium temperature generally does not exceed +40 ℃;
- 2.the medium PH value of 6.5-8.5;
- 3. the solid impurities in the volume ratio of not more than 0.1%, particle size of not more than 0.2mm:
- 4. the power frequency is 50HZ, single phase voltage AC 220V, voltage fluctuation range
Is 0.9 to 1.1 times the rated value.
